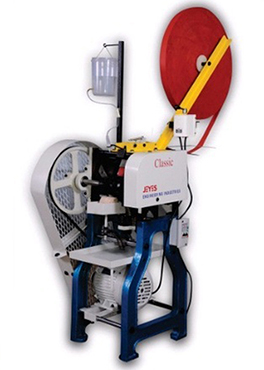

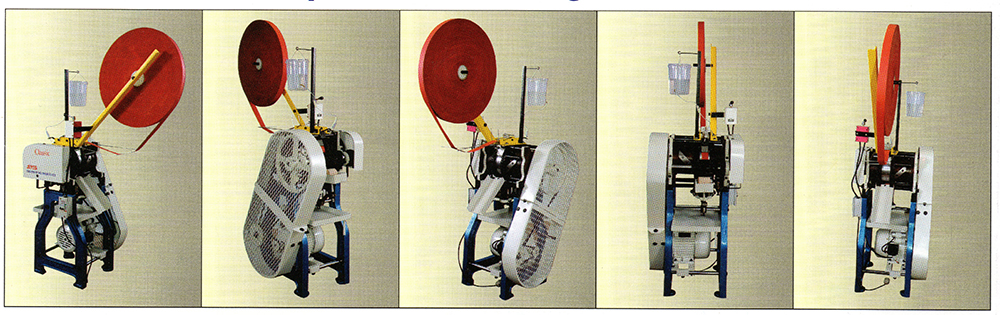

Paper Tube Making Machine

Features

• The major contruction parts are in quality castings and steel
• Product stable and high precision
• Highly precision ball bearings
• Dowel pins in all axes which ensure uniform drive
• No wastage in pasting and easy to clean

Specifications :

It fit all specification tube for crackers tube. It is full automatic machine with web paper
200-250 Type Paper Tube Making Machine For Crackers Technical Parameter

Type	200	250
Type ID mm	4-6.5	7-10
Rolling paper length mm	100 mm to max	150 mm to max
Tube length mm	25 to 85 mm max	25 to 85 mm max
Paper thickness (gsm)	50 to 120	80 to 120
Output	150 to 190 pcs/min	90 to 120 pcs/min
Approx. Weight (Kg)	100 Kg	150 Kg
Size (meter)	0.5x0.6x0.8	0.5x0.8x0.9

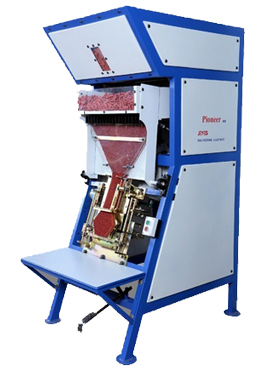

Hexagonal Paper Tube Making Machine for Crackers

Features

• Dowel pins in all axles which ensure uniform drive
• The Major construction parts are in quality castings and steel
• Products stable and high precision
• Low wastage and easy to clean
• Highly precision ball bearings

• This Machine can make all size Cake the module is adjustable.

Details of Cake Making Machine

Tube Length	:	38----150 mm
Output (Single User)	:	350 pcs/day
Tube Size (OD)	:	5----15 mm
Motor	:	1.5 Hp

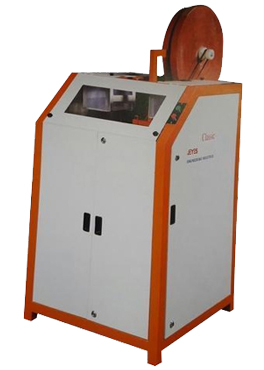

Double Tube Making for Crackers - Automatic Grade

Features

• The major contruction parts are in quality castings and steel
• Dowel pins in all axes which ensure uniform drive
• Product stable and high precision
• No wastage in pasting and easy to clean
• Highly precision ball bearings

Specifications :

It fit all specification tube for crackers tube. It is automatic machine with web paper
Double Tube Making Machine For Crackers Technical Parameter

Type	200 Drum	250 Drum
Output	300 to 350	180 to 200
Tube length mm	25 to 50 mm max	25 to 65 mm max
Rolling paper length mm	125 mm max	150 mm max
Oaoer thickness (gsm)	80 to 120	80 to 120
Type ID mm	4 to 6.5	7 to 10
